Electroplating Chemical Filter

27500.0 आईएनआर/टुकड़ा

मूल्य/उद्धरण प्राप्त करें

उत्पाद विवरण:

साइज Standard
वज़न किलोग्राम (kg)
उपयोग Industrial
प्रॉडक्ट टाइप Electroplating Chemical Filter
एप्लीकेशन Industrial
अधिक देखने के लिए क्लिक करें
अपना उत्पाद साझा करें:

वापस कॉल करने का अनुरोध जांच भेजें

मूल्य और मात्रा

न्यूनतम आदेश मात्रा 1

उत्पाद की विशेषताएं

वज़न किलोग्राम (kg)
साइज Standard
उपयोग Industrial
प्रॉडक्ट टाइप Electroplating Chemical Filter
एप्लीकेशन Industrial

व्यापार सूचना

एफओबी पोर्ट Ex-factory
भुगतान की शर्तें
आपूर्ति की क्षमता प्रति सप्ताह
डिलीवरी का समय दिन
नमूना उपलब्ध Yes
पैकेजिंग का विवरण Poly pack
मुख्य घरेलू बाज़ार
प्रमाणपत्र ISO 9001:2015

उत्पाद वर्णन

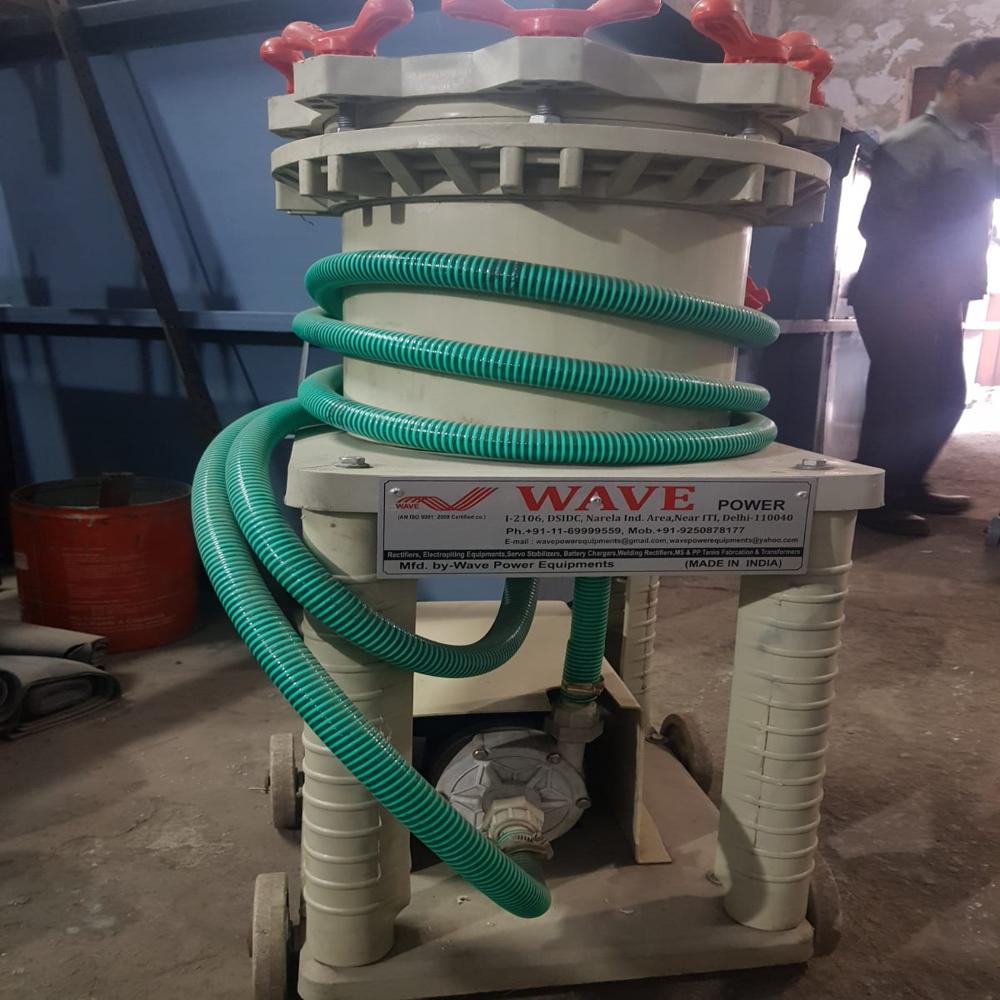

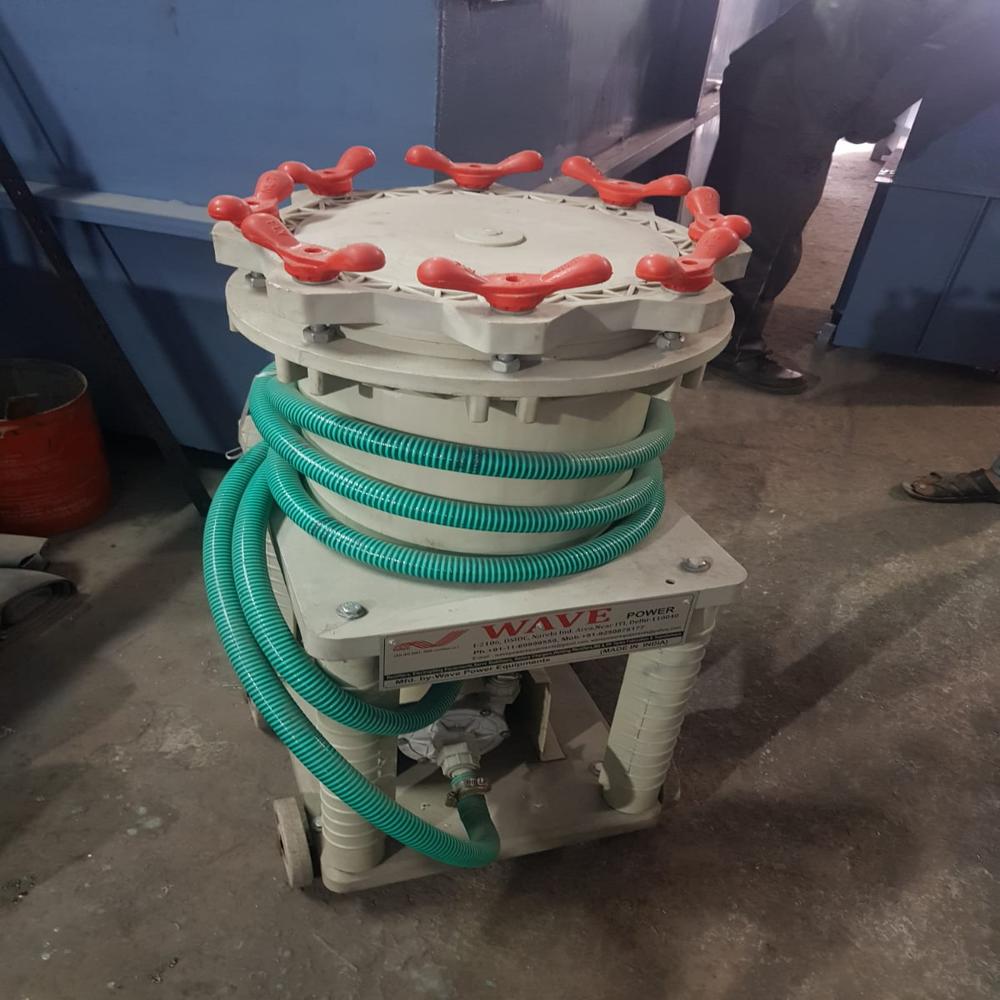

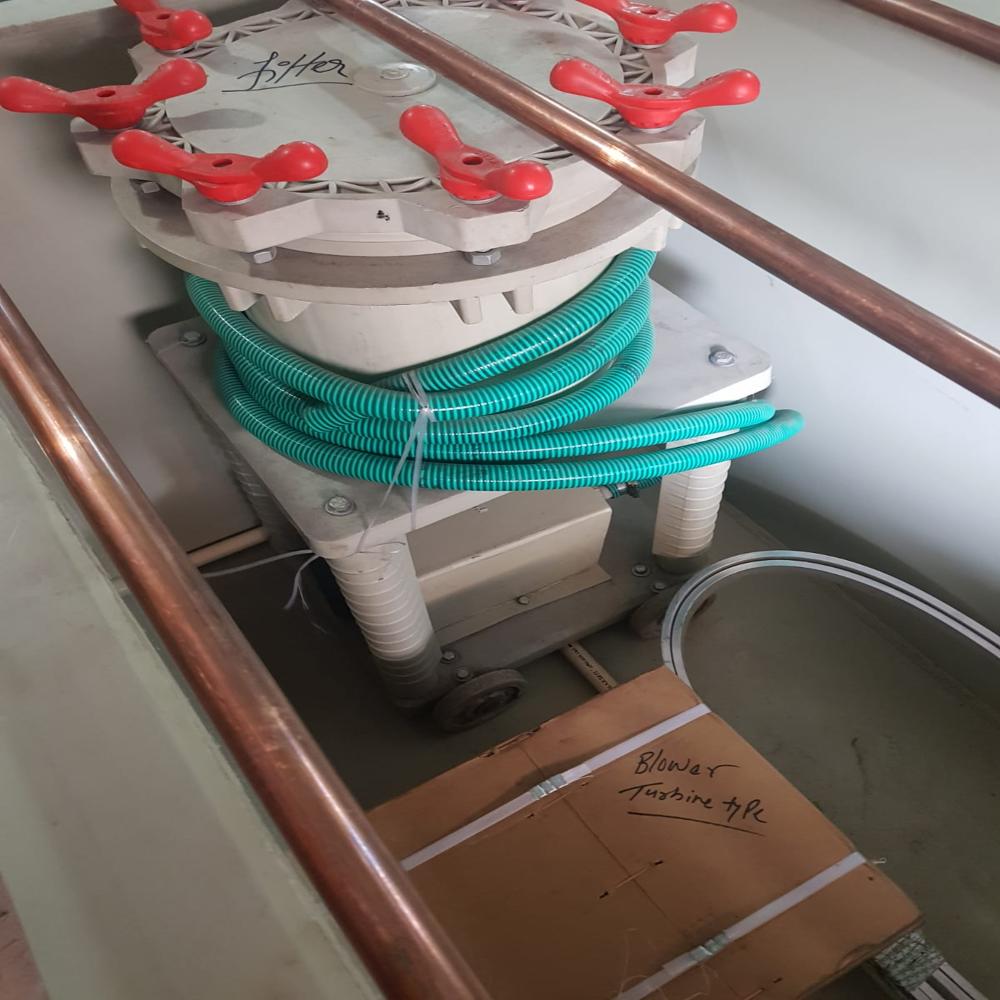

The Polypropylene electroplating chemical filter units has been specially developed for the filtration of electroplating solutions and the range of capacities available will meet the majority of automatic and manual plating installation requirements. Polypropylene filter units are totally enclosed, provide a large filtration area, are easy to clean and maintain, and provide effective retention of activated carbon or filter aids.

Polypropylene filters may be used on the majority of electroplating solutions including:

NICKEL - bright, semi-bright, dull ,
Electroless ZINC - cyanide, alkaline, acid, neutral
TIN - acid, stannate
COPPER - Acid copper, Cyanide Copper

For the following solutions filters fitted with special pumps can be supplied: - flourborate and fluoride based solutions - acid copper - acid tin (including bright solution.) - solutions containing free hydrochloric acid e.g. nickel chloride strike solutions. Specification:
Filter units are supplied in three sizes having one, two and three filter containers respectively. The filter contains are made of polypropylene material . The single and double container units are fitted with castors for ease of movement in a rectangular rust proof frame. Filter Pack: All filters are supplied with a Plate type pack . Packs can easily be removed from the container for cleaning . We can supply with filters with polypropylene filters cartridges also. Pump: Magnetically coupled, seals monoblock pumps can also be supplied. The filter units are supplied complete with a suitable motor, mounted on the rectangular rust proof frame. Pipe work: Filters are provided with inlets and outlets with two 3 meter lengths of reinforced acid resistant polypropylene hose. All pipe work is made up of polypropylene. Filter units can be used for following purposes.

Transfer of solution from plating tank to storage.
Solution circulation with filtration.
New bath Chemical make-up tanks.
Plating solution purification treatments.
Effluent solution filtration.

We supply Polypropylene Filter Unit with Magnetic Pump with single chamber and double chamber. Order Requirements: When ordering please give the following information:

Type number of filter unit required.
Solution to be filtered. Please note that the use of a single filtration unit for different types of solution is not recommended.
Solution temperature.
Power supply.
Details of pipe work requirements and any ancillary equipment existing or required. For more details and placing an order contact us
